YS-300 Medical Oxygen Concentrator
YS-300 Medical Oxygen Concentrator
YS-300 Medical Oxygen Concentrator
YS-300 Medical Oxygen Concentrator
YS-300 Medical Oxygen Concentrator

Medical Oxygen Concentrator

Place of Origin: Anhui, China
Brand Name: YASEE
Model Number: YS-300
Instrument classification: Class II
Warranty: 1 YEAR
After-sale Service: Free spare parts

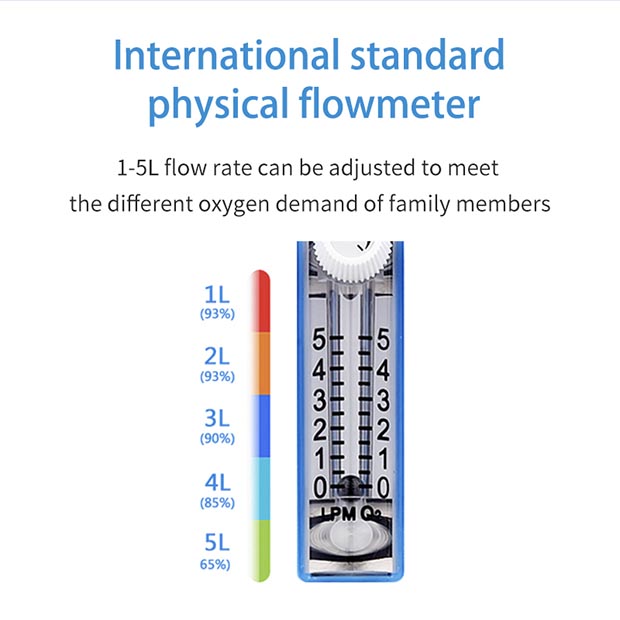

Flow rate: 0.5-3L/min adjustable
The maximum amount of oxygen: 3L/min ≥93±3%
Noise: ≤45 dB

YS-300 Medical Oxygen concentratorYS-300 Medical Oxygen concentrator
YS-300 Medical Oxygen Concentrator


YS-300 Medical Oxygen Concentrator Specification


Spec YS-300
Flow rate 0.5-3L/min adjustable
The maximum amount of oxygen 3L/min≥90%
Power 195W
Weight 8kg
Noise ≤45decibel
Size 367L*208W*345H
Package size 400L*260W*370H
YS-300 Medical Oxygen Concentrator Nine Characteristics


1. Automatic alarm detection system and photosensitive LED display, oxygen purity monitoring, and cumulative timing, power failure alarm and other functions, easy to operate.
2. Zero friction solenoid valve design, performance and life are more stable and durable.
3. Special high-efficiency Lithium Molecule (Z12-07), 30,000 hours of operation, stable performance and guaranteed.
4. Fully modularized internal design, integrated oxygen module system, ensure quick and convenient installation and maintenance.
5. High-efficiency and low-power design. Oxygen is produced within three minutes after power-on, and the oxygen purity is up to 93%±3%.
6. HEAP high-efficiency filter, can be used continuously for 5000 hours.
7. HEAP high-efficiency bacterial filter (0.3um) to ensure that the oxygen produced is pure and sterile, in line with PM2.5 requirements.
8. Multi-level noise reduction, low noise operation below 40dB.
9. Oil-free patented compressor, lifetime is over 25000 hours.
YS-300 Medical Oxygen Concentrator Overview


Models: YS-100, YS-100Y, YS-100YW; YS-300, YS-300Y, YS-300YW, YS-500, YS-500Y, YS-500YW
Production license No.: Wan Medical Products Administration License No. 20160040
Product registration certificate No.: Wan appliance register authorization No. 20162540272
Product technical requirement No.: Wan appliance register authorization No. 20162540272
Use period: 8000 hours (cumulative use) or 5 years
Factory number, production date: See product label

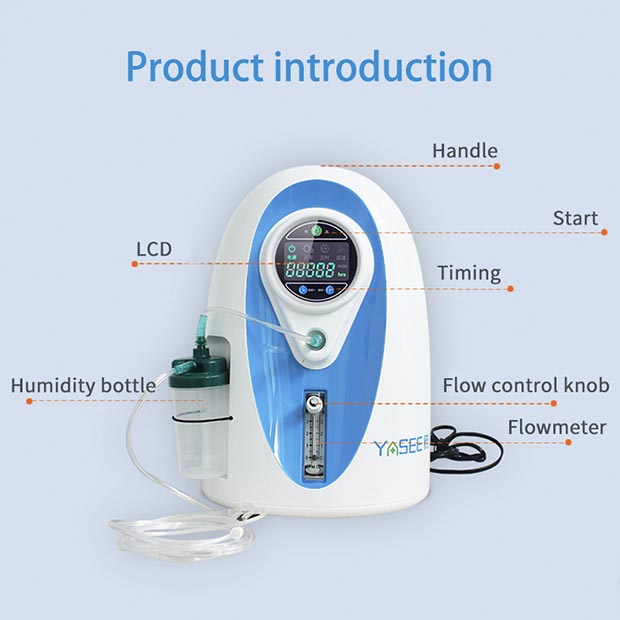

Product structure: Oxygen generator, oxygen suction tube, humidification bottle, oxygen concentration monitor and an atomizing device. An oxygen generator includ-ing compressor, molecular sieve adsorption tower, solenoid valve, control circuit components and flow meter.
Scope of application: Use air as raw material, use molecular sieve to transform pressure attach process to produce oxygen with a concentration range of 90% ~96%
